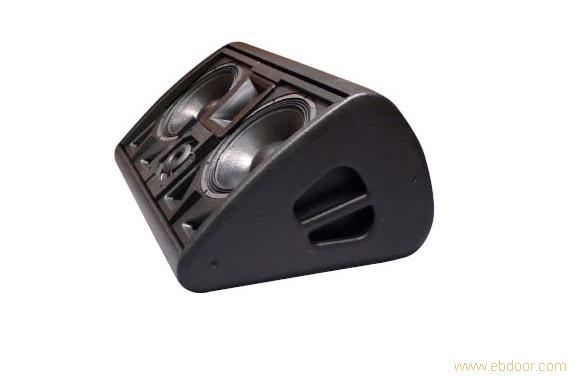

TYPE Three-way reflex stage monitor with
symmetrically arrayed 2 x 12" LF, phase plug
loaded MF and differential dispersion HF horn
FREQUENCY RESPONSE (1) 56Hz-18kHz ± 3dB
-10dB @ 48Hz
DRIVERS 2 x 12" (300mm)/3" (75mm) voice coil, ultra-long
excursion, water resistant cone
6.5" (165mm)/2" (50mm) ccaw ribbon voice coil,
water resistant cone
1" (25mm) exit, 1.7" (44mm) voice coil titanium
dome HF compression driver
RATED POWER (2) LF: 800W AES, 3200W peak
MF + HF: 250W AES, 1000W peak
RECOMMENDED AMPLIFIER MA5.2K / MA4.2s
SENSITIVITY (3) LF: 101dB
MF + HF: 102dB
MAXIMUM SPL
(calculated @ 1m)
 LF: 130dB continuous, 136dB peak
MF + HF: 126dB continuous, 132dB peak
NOMINAL IMPEDANCE LF: 4 ohms
MF + HF: 8 ohms
DISPERSION (-6dB) 60o - 100o horizontal (differential dispersion)
60o vertical
CROSSOVER 606Hz active
3kHz passive
ENCLOSURE 89 litres
FINISH Textured black paint
PROTECTIVE GRILLE Black perforated steel
CONNECTORS 2 x Neutrik NL4
FITTINGS 4 x skids
4 x M8 inserts
DIMENSIONS

 (W) 826mm x (H) 385mm x (D) 582mm
(W) 32.5ins x (H) 15.2ins x (D) 22.9ins
WEIGHT  39.5kg (87lbs)
