TYPE

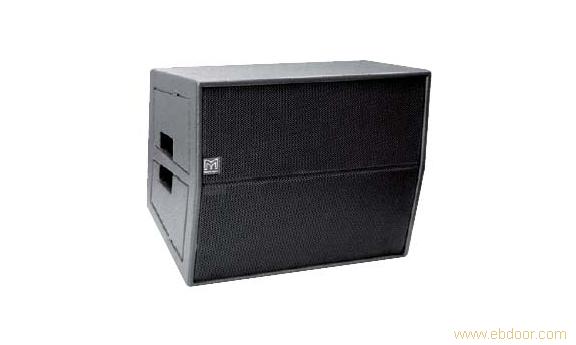

 Three-way downfill line array element

FREQUENCY RESPONSE (5)
 60Hz-18kHz ± 3dB

DRIVERS
 2 x8” (200mm)，2” (50mm) voice coil, regirxloaded direct radiators
2 x 8” (200mm)/2” (50mm) voice coil,

neodymium magnet,front horn loaded,rear reflex loaded drivers

4 x 1” (25mm) exit HF compression drivers, horn loaded

RATED POWER (2)
 LF+MF:800W AES, 3200W peak
HF: 150W AES, 600W peak
Passive: 800W AES, 3200W peak

RECOMMENDED AMPLIFIER
 LF+MF:800W AES,3200W

HF:400-1500Winto 4 ohrns

Passive: 400-1500Winto 4 ohrns

SENSITIVITY (6)
 LF+MF: 102dB
HF: 106dB
Passive: 111dB rising to 105dB at HF

MAXIMIUM SPL(7)
 131 dB continuous, 137dB peak

NOMINAL IMPEDANCE
 LF+MF: 6 ohms
HF: 6 ohms
Passive: 101dB, rising to 105dB at HF

DISPERSION (-6db)
 100-120o horizontal, 30o vertical(VDQ)

CROSSOVER
 300Hz Passive, 2.2kHz active or Passive

ENCLOSURE
 70litre,multi-laminate birch ply

FINISH
 Textured Black paint

PROTECTIVE GRILLE
 Black perforated steel

CONNECTORS
 2 x Neutrik NL4

PIN CONNECTIONS
 LF+MF:1+,1-

HF:2+,2-

Passive:1+,1-

FITTINGS
 9 x M10 inserts
pole mount socket

2 xbar handles

DIMENSIONS
 (W)628mm x (H) 506mm x (D) 369mm
(W)24.7ins x (H) 19.9ins x (D) 14.6ins

WEIGHT
 47kg (103lbs)
