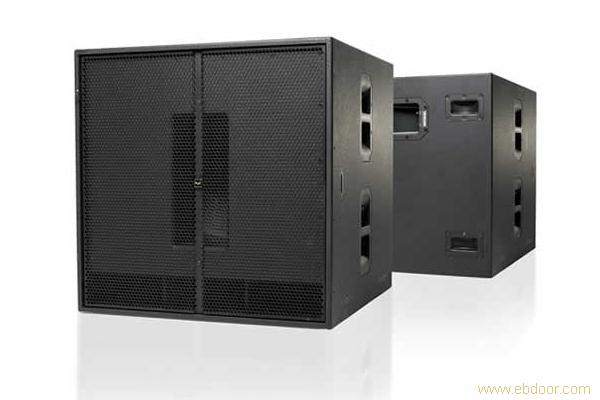

KV2 VHD1.21音箱

价格：面议

产品型号： VHD1.21

有效期：长期有效

所在地：上海市嘉定区

配送信息：

无

供应数量：不限

了解详情，请立即咨询！

1 2 3 4 5 6 7 8

该公司共有 8条同类“VHD系列”信息查看全部>>

详细说明

The VHD 1.21 is a single 21”, Low Q band-pass subwoofer system that adds extension and weight for applications where you want to feel as well as hear very high definition audio. Working down to 23Hz with an efficiency for two boxes of 102dB it shares the same footprint as the other VHD subwoofers in a compact lightweight easily transported package. Alongside the VHD 2.15 it forms part of a remarkable five way active system.

Applications
Subwoofers for large and medium -sized live music touring applications alongside
VHD 2.15 / VHD 2.0 / VHD 1.0.
Very high quality fixed installations working as the above.
Professional portable PA systems for large format AV speech and multimedia playback.
Very High Definition dance systems providing the ultimate ultra low frequency
reproduction for clubs and events.

Specifications
Product VHD1.21
System Acoustic Perfomance
-3dB Response 29Hz - 60Hz

-10dB Response 23Hz - 60Hz

Max SPL Long-term 135dB (two VHD 1.21s)

Max SPL Peak 137dB (two VHD 1.21s)

Crossover Point 60Hz

Impedance 8Ω

Subwoofer Section
Acoustic Design Large chamber low Q band pass

Woofer Size/ Voice Coil Diameter/ Design 21" / 4" Inside Outside

Diaphragm Material Epoxy Reinforced Cellulose

Magnet Type Ferrite

Subwoofer Amplifier Requirement 800W per VHD 1.21 from a VHD 3200

Physical Dimensions
Height 710mm (27.95")

Width 700mm (27.55")

Depth 750mm (29.52")

Weight 60kg (132.0lbs)

Speaker Input /Output
Speaker Input/ Output Input and Output EP4
