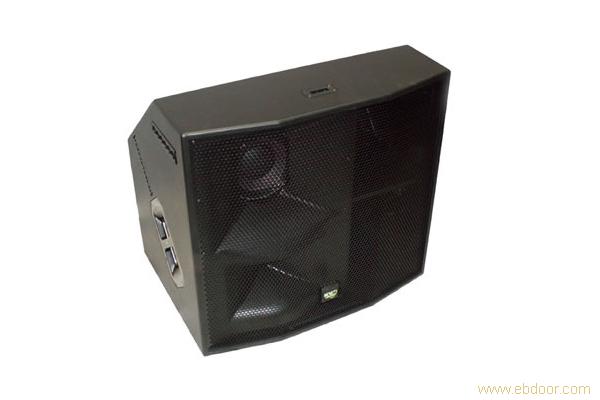

KV2 VHD1.0音箱

价格：面议

产品型号： VHD1.0

有效期：长期有效

所在地：上海市嘉定区

配送信息：

无

供应数量：不限

了解详情，请立即咨询！

1 2 3 4 5 6 7 8

该公司共有 8条同类“VHD系列”信息查看全部>>

详细说明

Featuring the same compression driver as the VHD 2.0 but on a wide angle 110° horizontal by 40° vertical horn, the VHD 1.0 Mid High / down-fill enclosure features a single 12”low mid and single 8” mid range speaker taken from the VHD 2.0. Designed to be powered as a slave from the VHD 2.0 cabinet or directly from the VHD 2000 amplifier, all equalization, set up and level are preset providing a plug and play solution for large scale touring and high quality installations. Alternatively as a stand alone box up to three VHD 1.0’s can be powered from a single VHD 2000 amplifier. Like the VHD 2.0, VHD 1.0 is available in left and right versions for downfill applications.

Applications
Down-fill for large and medium -sized live music touring applications.
Very high quality fixed installations as the above or as a standalone unit.
Professional portable P.A systems for large format AV speech and multimedia playback
Very High Definition dance systems providing the ultimate reproduction for clubs and events.

Specifications
Product VHD1.0
System Acoustic Perfomance
-3dB Response 100Hz - 22kHz

-10dB Response 85Hz - 30kHz

Full Range mode -3dB Response 65Hz - 22kHz

Max SPL Long-term 134dB (139dB two VHD 1.0s)

Max SPL Peak 137dB (142dB two VHD 1.0s)

Crossover Point 100Hz, 450Hz, 2.2kHz

Impedance Low 16Ω Mid 12Ω High 16Ω

Mid/ High Horn Coverage Horizontal/ Vertical 110° x 40°

Mid Range Section
Acoustic Design Horn loaded

Woofer Size/ Voice Coil Diameter/ Design One 8" / 3.0" / Trans Coil

Diaphragm Material Epoxy Reinforced Cellulose

Magnet Type Neodymium

Mid/ High Horn Coverage Horizontal/ Vertical 110° x 40°

Midrange Amplifier Requirement 300W from VHD 2000

Mid-Bass Section
Acoustic Design Horn loaded

Woofer Size/ Voice Coil Diameter/ Design Two 12" / 3" / Inside Outside

Diaphragm Material Epoxy Reinforced Cellulose

Magnet Type Neodymium

Mid-bass Amplifier Requirement 600W from VHD 2000

Physical Dimensions
Height 660mm (25.98")

Width 700mm (27.55")

Depth 495mm (19.48")

Weight 45kg (99lbs)

High Frequency Compression Driver
Throat Exit Diameter/ Diaphragm Size 1.4" / 3.0"

Diaphragm Material Nitride Titanium

Magnet Type Neodymium

High Frequency Amplifier requirement 100W from VHD 2000

Rear H.F attenuation switch -3dB for high frequency only

Speaker Input /Output
Speaker Input/ Output Input and output EP6
