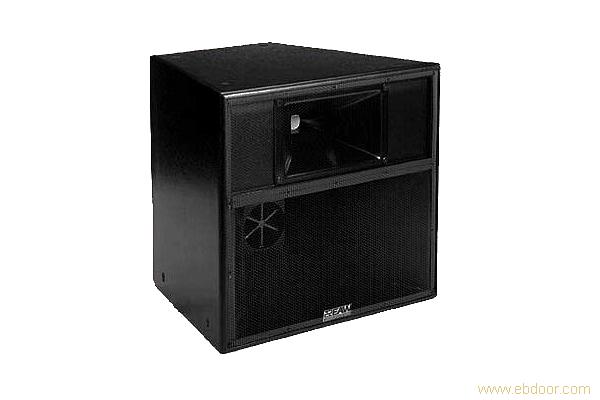

The AS460e is 2-way mid/high system in a trapezoidal enclosure that is engineered for use in permanent installations. It provides exceptional mid/high performance capabilities in a module with 60-degree horizontal dispersion. It can be used as a stand-alone system for speech-only applications or, together with AS415e, AS422e, or AS625e LF modules.


 Product Group: I
Operating Mode: Passive or bi-amp
Operating Range: 200 Hz to 15 kHz
Beamwidth: 60° (h) x 45° (v)
Power Handling/Output: PASSIVE: (MF/HF) 450W (8 ohms) - 133dB SPL (long term).
BI-AMPED: (MF) 400W (8 ohms) - 135dB SPL; (HF) 125W (8 ohms) - 130dB SPL
Connections: Dual 6-contact terminal strips with jumpers
Rigging/Mounting: Integral suspension points
Dimensions/Weight: 22.5" (h) x 24.6" (w) x 23" (d); 95 lbs
2-way mid/high
1 x 10 in woofer
1 x 1.4 in compression driver, horn-loaded
Installation
