KV2 ES1.0

价格：面议

产品型号： ES1.0

有效期：长期有效

所在地：上海市嘉定区

配送信息：

无

供应数量：不限

了解详情，请立即咨询！

1 2 3 4 5 6 7

该公司共有 7条同类“ES系列”信息查看全部>>

详细说明

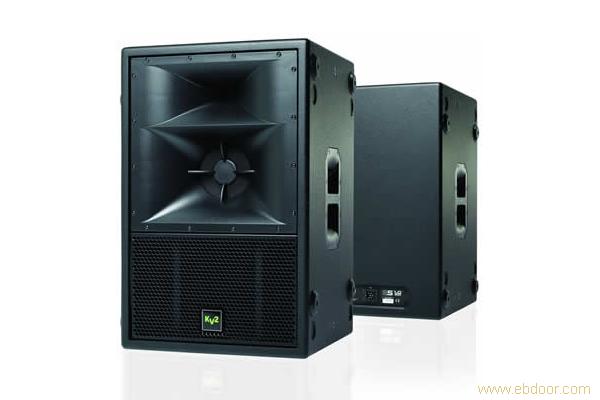

The ES 1.0 is a 3-way, very high output, active-driven, mid/high/mid-bass module designed as part of a complete ES system driven by the EPAK 2500/R control and amplification unit. The ES 1.0 is compact, lightweight and can be combined with a variety of ES series subwoofers. As a single system it offers one of the highest quality portable sound reinforcement solutions on the market today. When coupled with another ES 1.0 (running two stacked horizontally per side) it becomes an even more powerful tool, providing peak SPL’s of 139dB and a throw of up to 40 metres for applications of up to 3000 people.

Applications
Very High quality fixed installations.
Professional portable PA Systems for large format AV speech and multimedia playback.
Medium-sized live music applications.
Professional Mobile DJ with ES subwoofers and EPAK 2500/R.

Specifications
Product ES1.0
System Acoustic Perfomance
-3dB Response 130Hz - 20kHz

-10dB Response 85Hz - 28kHz

Max SPL Long-term 131dB

Max SPL Peak 134dB

Crossover Point 130Hz, 500Hz, 2.5kHz

Impedance Low 16Ω Mid 8Ω High 8Ω

Mid Range Section
Acoustic Design Horn Loaded

Woofer Size/ Voice Coil Diameter/ Design 6" / 1.75" / Trans Coil

Diaphragm Material Epoxy Reinforced Cellulose

Magnet Type Neodymium

Mid/ High Horn Coverage Horizontal/ Vertical 90° x 40° rotatable

Midrange Amplifier Requirement 200W from EPAK 2500/R

Mid-Bass Section
Acoustic Design Horn Loaded

Woofer Size/ Voice Coil Diameter/ Design 12" / 3" / Inside Outside

Diaphragm Material Epoxy Reinforced Cellulose

Magnet Type Neodymium

Mid-bass Amplifier Requirement 600W from EPAK 2500/R

Physical Dimensions
Height 700mm (27.55")

Width 450mm (17.71")

Depth 450mm (17.71")

Weight 34kg (74.8lbs)

High Frequency Compression Driver
Throat Exit Diameter/ Diaphragm Size 1" / 1.75"

Diaphragm Material Nitride Titanium

Magnet Type Neodymium

Mid/ High Horn Coverage Horizontal/ Vertical 90° x 40° rotatable

High Frequency Amplifier requirement 100W from EPAK 2500/R

Speaker Input /Output
Speaker Input/ Output Input only EP6
