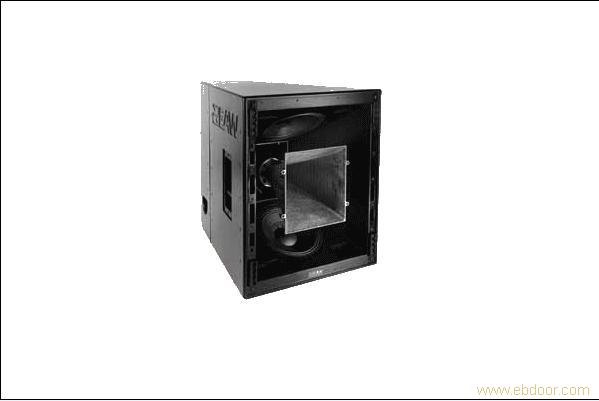

The KF750F is designed to create arrays with optimized coverage in both the horizontal and vertical planes to cover audience areas ranging from 200 to 80,000 people. KF750F arrays are smaller, lighter, more efficient and therefore more powerful than those built with other systems. These smaller, lighter arrays are easier to fly, require less truck space and permit more open sight lines to cover any given venue.


 Product Group: M, S
Operating Mode: Tri-amp or quad-amp
Operating Range: 48 Hz to 18 kHz
Beamwidth: 35° (h) x 35° (v)
Power Handling/Output: TRI-AMPED: (LF) 1200W (4 ohms; 600W at 8 ohms per driver) - 133dB SPL (long term);                     (MF) 400W (8 ohms) - 135dB SPL; (HF) 200W (8 ohms) - 139dB SPL
Connections: 2 Neutrik NL8 Speakon
Rigging/Mounting: 4-position flytrack
Dimensions/Weight: 31" (h) x 27" (w) x 34" (d); 190 lbs
3-way full range
2 x 12 in woofers
1 x 10 in cone, horn-loaded
1 x 2 in compression driver, horn-loaded
Portable & Installation
