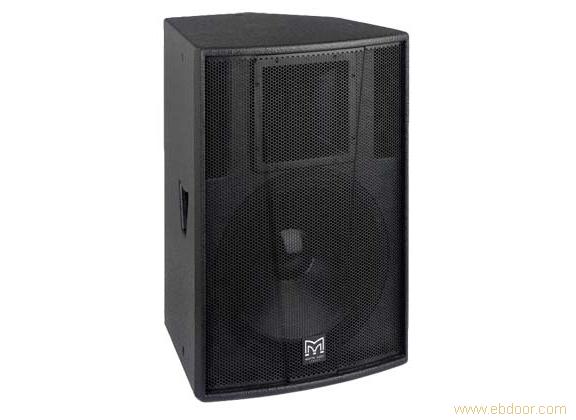

TYPE
 Compact, two-way passive

FREQUENCY RESPONSE (5)
 55Hz-18kHz ± 3dB

-10dB @ 45Hz

DRIVERS
 15” (380mm)/3” (75mm) voice coil,

neodymium magnet LF driver

1.4” (35mm) exit HF compression driver

RATED POWER (2)
 400W AES, 1600W peak

RECOMMENDED AMPLIFIER
 400W-1200W into 4 ohms

SENSITIVITY (6)
 100dB

MAXIMUM SPL (7)
 124dB continuous, 130dB peak

NOMINAL IMPEDANCE
 8 ohms

DISPERSION (-6dB)
 80° horizontal, 50° vertical

CROSSOVER
 1.4 kHz passive

ENCLOSURE
 68 litre, multi-laminate birch ply

FINISH
 Textured black paint

PROTECTIVE GRILLE
 Black perforated steel

CONNECTORS
 2 x Neutrik NL4

PIN CONNECTIONS
 FR+,- : 1+,1- , Link thro’: 2+,2-

FITTINGS
 12 x M8 threaded inserts

1 x mounting pole socket

2 x pocket handles

DIMENSIONS
 (W) 471mm x (H) 690mm x (D) 443mm

(W) 18.5ins x (H) 27.2ins x (D) 17.5ins

WEIGHT
 30.5 kg (67lbs)
