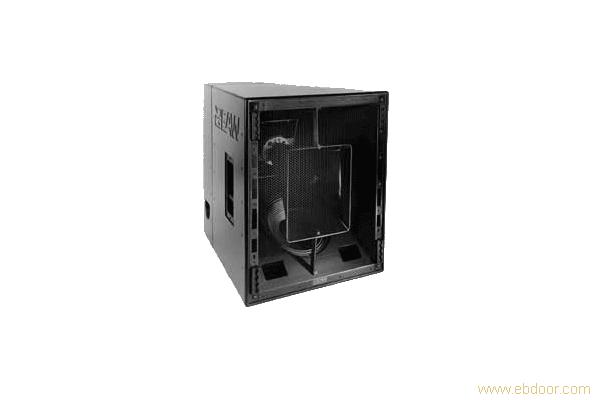

The KF755F is the companion to the KF750F full-range loudspeaker. It provides optimized downfill coverage below flown arrays or, when inverted, supplies upfill balcony coverage from ground-stacked arrays. Because the large mid frequency horn contains both the high and low frequency sub-systems, the overall package is compact, but still attains consistent wideband pattern control in both the vertical and horizontal planes.


 Product Group: M, S
Operating Mode: Tri-amp
Operating Range: 48 Hz to 18 kHz
Beamwidth: 35° (h) x 35° (0° to -35°, v)
Power Handling/Output: TRI-AMPED: (LF) 600W (8 ohms) - 126dB SPL (long term);                                                 (MF) 400W (8 ohms) - 134dB SPL; (HF) 200W (8 ohms) - 138dB SPL
Connections: 2 Neutrik NL8 Speakon
Rigging/Mounting: 4-position flytrack
Dimensions/Weight: 31" (h) x 27" (w) x 34" (d); 168 lbs
3-way full range
1 x 12 in woofers
1 x 10 in cone, horn-loaded
1 x 2 in compression driver, horn-loaded
Portable & Installation
